TC308P

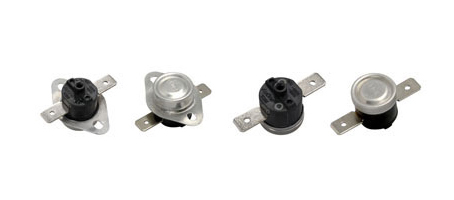

TC308 / TC308-P Series This calibrated thermostat is a snap-type thermostat. It carries a bi-metal disc inside the housing. Electrical current does not flow through the bi-metal disc which does not have any self-heating effect. Two versions - normal-open and normal-close, are available. Has been widely applied in cooking appliance, heating appliance, and various electrical appliance. TC308 is an auto-reset thermostat. TC308-P is a manual-reset thermostat. It carries a PTC pellet. When the thermostat opens, the PTC pellet will be heated up to keep the thermostat at its open-status, until the power input is unplug.
Specification
| Electrical Rating | 230-250V AC 16Aļ¼resistive loadingļ¼ |
| Maximum Temperature Rating | 160 oC |
| Endurance | 10,000 cycles |
| Degree of Protection | IP30 |
| Insulation Class | Cass 1 |
| Safety Compliance | VDE / CQC / RoHS / REACH |
| Utility Patent (PRC) | 201020290836.7 |
