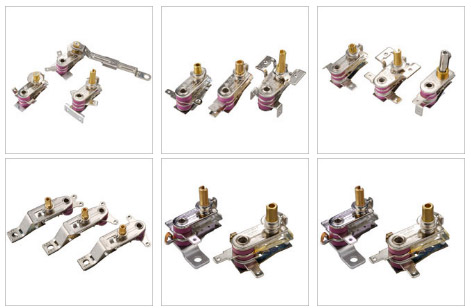

901A
Heat conducts through the metal mounting plate to trigger the thermostat. Provide
good and stable thermo-temperature control and minimum EMC interference.
Has been widely applied in kitchen cooking products such as waffle maker, rice cooker, deep fryer and oven.
Specification
| Rating | 125V AC, 15A / 250V AC, 10A (Resistive loading) |
| Maximum rated temperature | 260°C |
| Maximum ambient temperature | T300°C |
| Endurance | 100,000 cycles |
| Hi-pot | 1500V AC 1 min / 2500VAC 1 min |
| Safety Compliance | UL/CUL/VDE/CQC/CE/RoHS/REACH |
