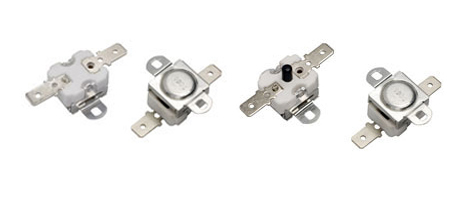

TC-301
This series of thermo-control device is snap-type thermostat. It consists of a thermo-disc sitting on a ceramic bracket. Shape of disc changes according to the ambient temperature and turns the thermostat ON-&-Off.
It has the merit of precise temperature control and can be applied in high temperature ambient. There is no electric current passing through the thermo-disc so that current loading will not affect the temperature control performance. It has been widely applied in cooking appliance and heating appliance.
Specification
| Rating | 250V AC, 10A (Resistive Load) |
| Maximum Rated Temperature | 250℃ |
| Maximum ambient Temperature | T250℃ |
| Endurance |
30,000 cycles (16A, UL/CUL/VDE) 100,000 cycles (10A, UL/CUL/VDE) |
| Hi-pot | 1500VAC 1min |
| Safety Compliance | UL/CUL/VDE/RoHS/REACH |
