TP
TP Series

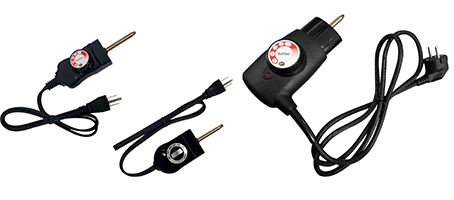

TP series Thermo-probe provides temperature
setting, temperature regulating, and cord connection features. Metal probe is
inserted to the product for temperature sensing. Cord can be directly connected
to power source. Temperature graphic is printed on Housing for easy reading.
Widely applied to cooking product such as Oil Deep Fryer, Multi-purpose Cooking
Pot, Skillet, Roaster.
SpecificationTP-010 (without Grounding) / TP-020 (with Grounding)
| Cord Type |
HPN cord AWG 16 |
| Rating |
120V AC, 1600W (Resistive Load) |
| Maximum Ambient Temperature | T150°C |
| Maximum Rated Temperature of the sensing part | 250°C |
| Endurance | 100,000 cycles |
| Hi-pot | 1500V AC 1 min |
| Safety Compliance |
UL / CUL |
TP-601A / TP-601B
| Cord Type |
H05RRR-F2 with Grounding 3 x 0.75sqmm ~ 1.5sqmm |
| Rating |
120V AC 15A / 250V AC 10A (Resistive Load) |
| Maximum Ambient Temperature | T150°C |
| Maximum Rated Temperature of the sensing part | 250°C |
| Endurance | 100,000 cycles |
| Hi-pot | 1500V AC 1 min |
| Safety Compliance |
TUV |
